INNER CONTROL VALVE BREAKER
IHB Series
Get a Quote Learn More >

IHB Series Hydraulic Breaker

Product Introduction

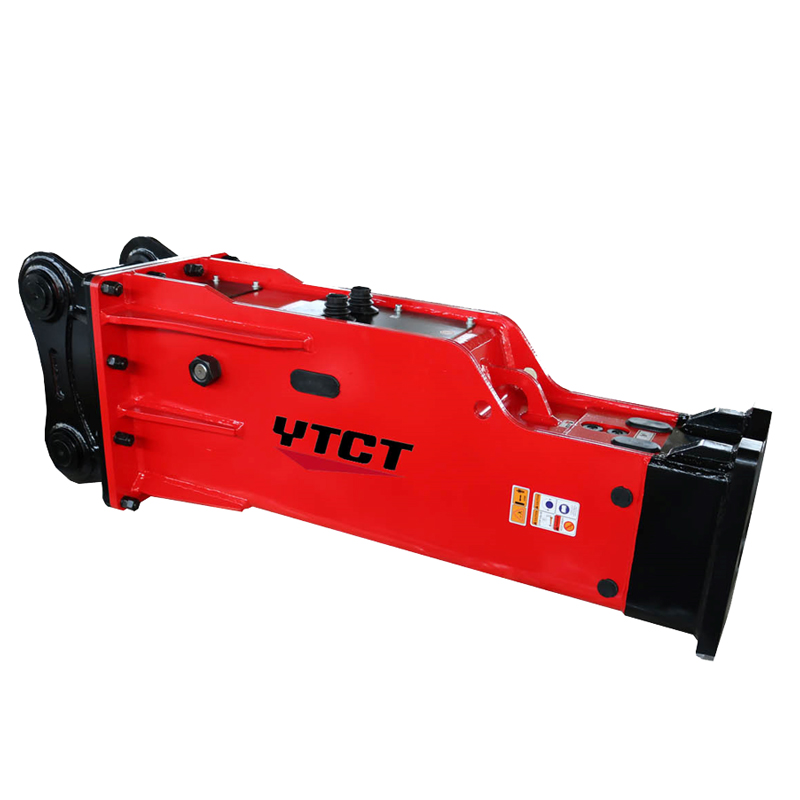

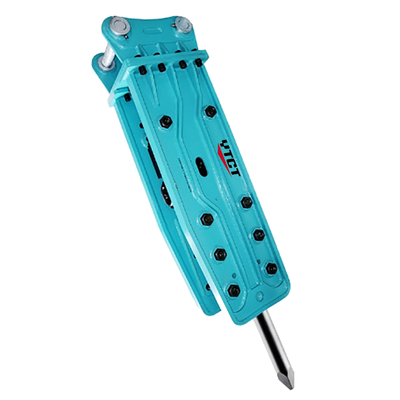

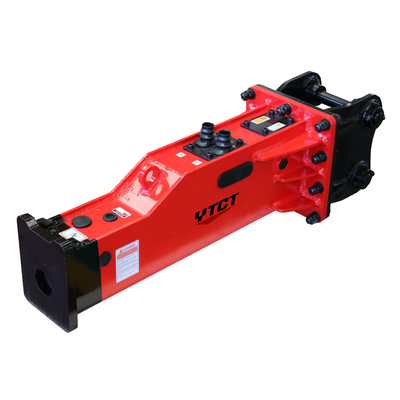

YTCT IHB Series excavator rock hammers are well-established range of hydraulic breakers (also known as hydraulic breakers). We designed various range of brakcet type, box type (silent type), top type, side type for excavators from mini duty to heavy duty. Breakers are primarily used in construction, demolition, and mining for breaking rock, concrete, and other hard materials.

Efficient Percussion System
Combination of gas and oil pressure increases breaker hitting power while reducing demand on the carrier's hydraulic system.
Durability
Breakers core parts (cylinder, front head, back head ) are built with high qaulity low-carbon alloy steel and profession heat-treatment process to prevent sudden fractures and ensure a long-life service time.
Low Maintenance Cost
Designed with only internal control valve and less spare parts. To decrease maintenance costs by minimal components of breaker.
Common Features
The IHB series is engineered to balance impact power and durability. We highlight several common features across the range:

Efficient Percussion System

Combination of gas and oil pressure increases breaker hitting power while reducing demand on the carrier's hydraulic system.


Durability

Breakers core parts (cylinder, front head, back head ) are built with high qaulity low-carbon alloy steel and profession heat-treatment process to prevent sudden fractures and ensure a long-life service time.

Low Maintenance Cost

Designed with only internal control valve and less spare parts. To decrease maintenance costs by minimal components of breaker.


IHB Series Hydraulic Breaker

YTCT IHB Series excavator rock hammers are well-established range of hydraulic breakers (also known as hydraulic breakers). We designed various range of brakcet type, box type (silent type), top type, side type for excavators from mini duty to heavy duty. Breakers are primarily used in construction, demolition, and mining for breaking rock, concrete, and other hard materials.
Technical Parameters
Model Chisel
Diameter		 Suitable
Excavator		 Operating
Pressure		 Operating
Oil Flow		 Blow
Frequency		 Oil Hose
Diameter		 Breaking
Power		 Auto
Grease
System		 Back Cylinder
N2 Gas Pressure		 Accumulator
Pressure
mm ton kg/cm2 l/min bpm inch J ○ Bar /
YTCT05 35 0.5-1 90-120 15-25 800-1450 1/2 250 ○ 14-17 /
YTCT10 40 0.8-2.5 90-120 15-25 800-1450 1/2 259 ○ 14-17 /
YTCT20 45 1.2-3.0 90-120 20-30 700-1200 1/2 410 ○ 14-17 /
YTCT30 53 2.5-4.5 90-120 25-50 600-1100 1/2 770 ○ 14-17 /
YTCT35 60 3-5.5 90-120 25-50 600-1100 1/2 890 ○ 14-17 /

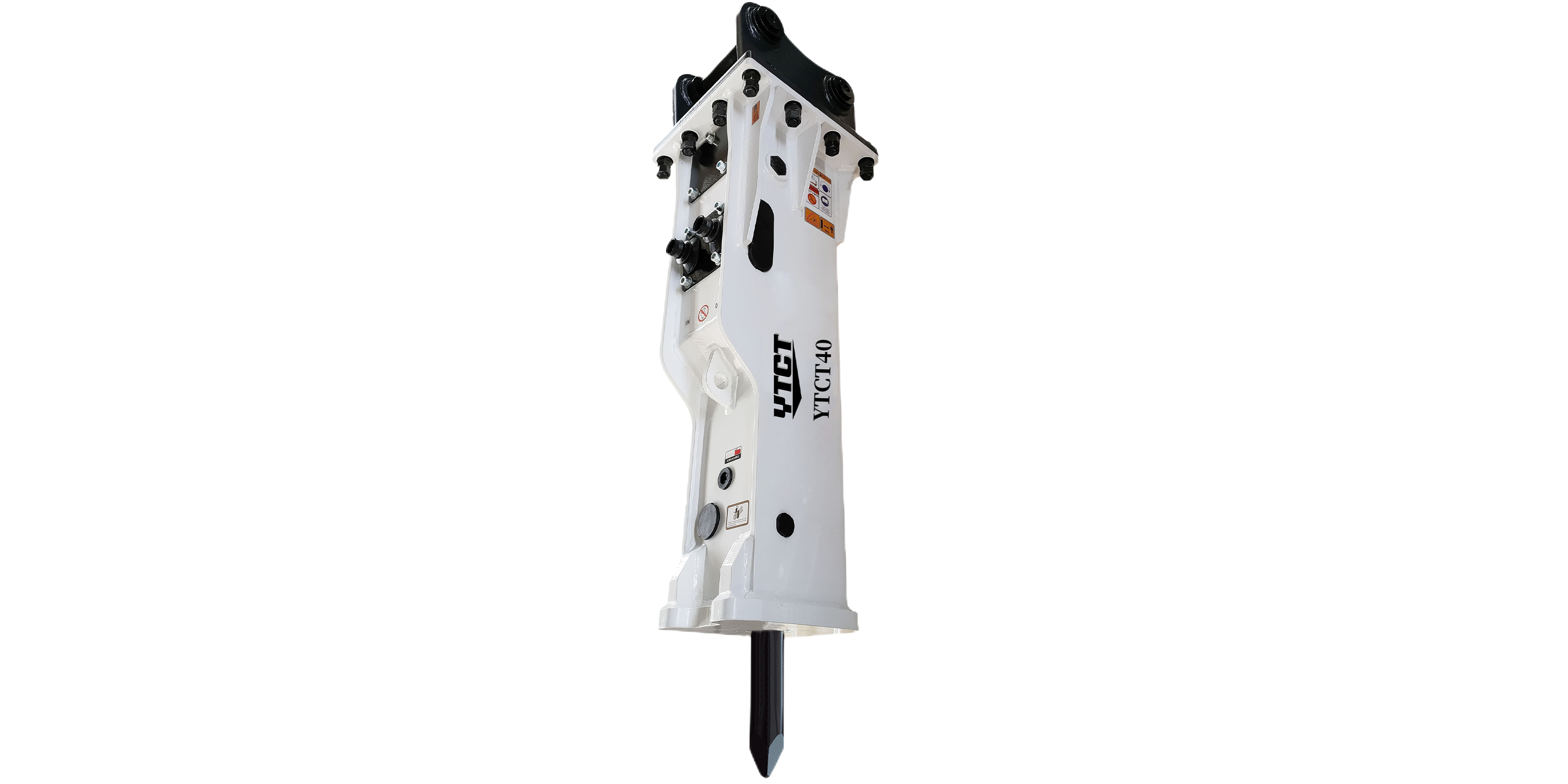

YTCT40 68 4-7 110-140 40-70 500-900 1/2 950 ○ 14-17 /
YTCT43 75 6-9 120-150 50-90 400-800 1/2 1240 ● 14-17 /
YTCT45 85 7-14 120-150 50-90 400-800 3/4 2000 ● 14-17 /
YTCT50 100 11-16 150-170 80-110 350-700 3/4 2640 ● 14-17 /
YTCT60 125 15-18 150-170 80-110 350-700 3/4 3800 ● 14-17 /
YTCT70 135 16-21 160-180 130-150 400-800 1 4300 ● 14-17 /
YTCT81 140 18-26 160-180 120-180 350-500 1 4700 ● 14-17 /
YTCT81A 140 18-26 160-210 120-180 400-550 1 5000 ● 14-17 55-60
YTCT100 150 26-30 160-180 150-210 350-450 1 5500 ● 14-17 55-60
YTCT121 155 28-32 160-180 180-240 300-450 1¼ 7900 ● 17-20 55-60
YTCT131 165 30-35 160-180 200-260 250-400 1¼ 8700 ● 17-20 55-60
YTCT140 165 32-38 160-180 210-270 250-380 1¼ 9000 ● 17-20 55-60
YTCT151 175 37-45 160-190 210-290 200-350 1¼ 9500 ● 18-22 55-60
YTCT185 185 45-50 205-245 220-300 180-200 1¼ 13500 ● 22-25 55-60
YTCT195 190 48-55 225-265 270-330 180-200 1¼ 18500 ● 25-28 55-60
YTCT210 210 60-75 245-285 290-350 150-180 1¼ 23000 ● 25-28 55-60
YTCT230 230 85-120 270-300 380-460 90-130 1¼ 28000 ● 25-28 55-60

14
Product Uses
YTCT IHB series rock breakers have wide range of model. 22 different models are designed to fit specific excavator weight class and various job site requirements:

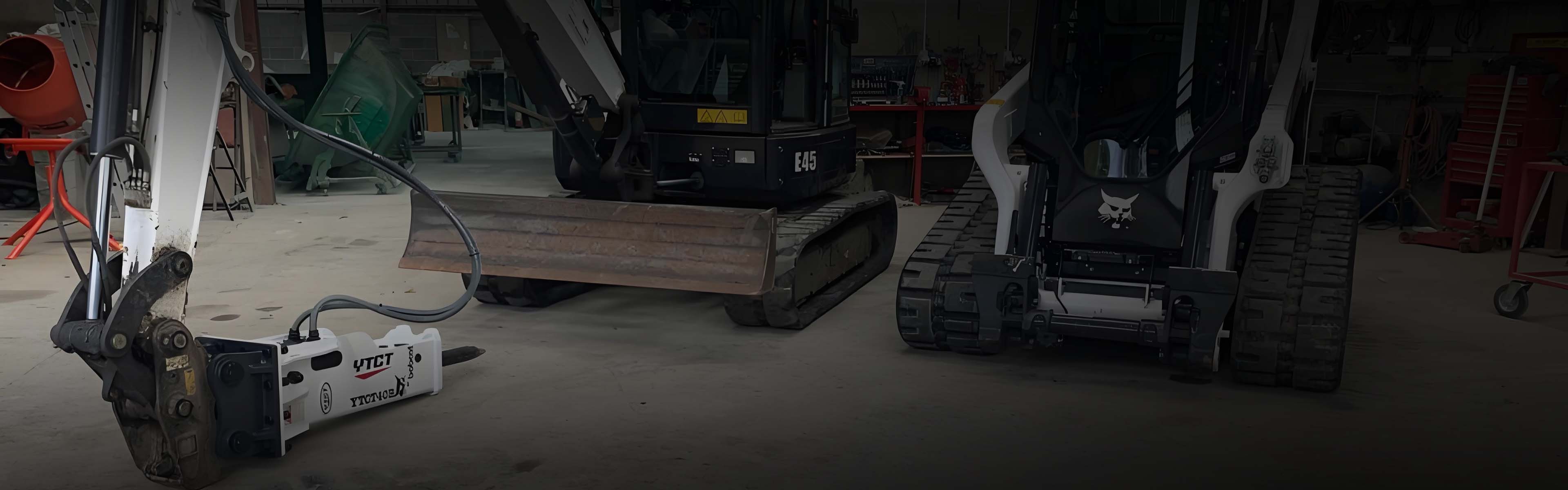

  • Light-duty Class Breakers: Fit on compact or mini excavators and skid steer loaders to work in compact worksite and handle lightweight jobs. Ideal for urban demolition, indoor work, and landscaping where space is limited.

  • Middle-duty Class Breakers: A versatile, popular choice for general construction and medium-scale quarrying, balancing power and efficiency.

  • Heavy-duty Class Breakers: For major mining operations, large-scale demolition, and heavy civil engineering projects.
Operation Guide for YTCT IHB Series Excavator Hydraulic Hammers
1. Use the YTCT excavator's quick coupler directly attach breakers by hooking the pins assy on the breakers; or mounting pins to attach the breaker on excavator stick.
2. Before connection hydraulic pipes lines, clean all the area around the hoses. Connection hydraulic line to another on excavator and make the hydraulic oil flow around inside the excavator system to filter the dust inside the excavator hydraulic oil. Repeat this process for 2 to 3 times.
3. Release some hydraulic oil on the empty bucket to check if it is clean; Check all the bolts on the breakers to inspect if there is a loosing and fastern well.
4. Charge the N2 gas at back head with range 14 ~ 17; connect the pipes lines from excavator to hydraulic breaker.
5. Agasint Chisel tool on the rock or ground or where you want to breaker. Every 10 seconds change the break point and inspect the working condition of breakers.
6. If no problem, keep operating under the insturction of 《 YTCT Hydraulic Breaker User Manual 》
FAQs
  • How do I choose the right YTCT IHB breaker for my machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    Carrier Weight：Breaker's installed weight must be within excavator's rated accessory range；Operating Pressure (bar/psi) and Hydraulic Flow (L/min)
  • What daily inspections are required?
    加 Created with Sketch.
    形状 Created with Sketch.
    Inspection ltem What to Check Action if Problem Found
    Bolts & nuts Through bolt, bracket mounting bolt looseness Retighten to correct torque
    Hoses & fittings Looseness, visible damage, oil leakage Retighten or replace damaged hoses
    Oil leakage Connection between back head and cylinder Consult Soosan if abnormal
    Chisel Gap between front head and rod
    cracks, wear    		 Repair if deformed/worn; replace ifcracked or excessively worn
