EXCAVATOR HYDRAULIC TREE SHEAR
TS Series
Get a Quote Learn More >

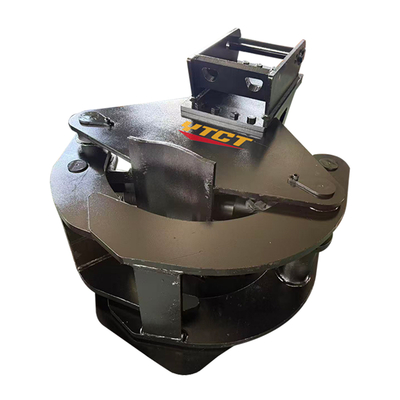

YTCT Excavator Tree Shear

Excavator Bamboo Shear Introduction
Boost productivity with this multi-functional tree shear that combines rapid cutting, grabbing, and stacking in one powerful tool. Designed for 1.8–20 ton excavators, it features a universal mount for quick attachment to major brands like Caterpillar, Komatsu, and Deere.

Ideal for forestry, demolition, and site prep, its high-strength steel build ensures durability in tough conditions. Save time, reduce labor costs, and tackle overgrown terrain with precision. Optimized for efficiency, this attachment delivers superior performance for contractors worldwide.

Hydraulic Bamboo Shear Advantage
YTCT TS Series Hydraulic Shear for Compact Excavator. Why Choose YTCT? Our Factory List Features:

High-Strength Wear-Resistant Blade

Thin sharp blades for easy cutting of tough trunks.


Compact & Lightweight

Zero stress on mini excavators – no boom overloading or rear tipping. Ideal for tight orchards, gardens, and narrow field pathway

Wear-Resistant Bushings & Multi-Point Lubrication

All pivot pins are fitted with built-in wear sleeves and grease nipples. Regular greasing reduces wear and extends machine life.


Combination of Shear & Grapple

After cutting, YTCT tree / bamboo shear can grab the object and transfer, load / unload and sorting.

Hydraulic Forestry Shear

YTCT Tree Shear is an excavator attachment that combines rapid cutting with efficient grabbing and stacking. Suitable excavator from 1.8 tons to 20 tons, features a universal mounting bracket compatible with most major brands.

Standard dual-pin mount with optional side frames. Hydraulic rotation is the optional function to fit various demand. With bolt-on wear blades and fully greaseable bushing pins on all articulation points.

Purpose-built for land clearing, brush cutting, tree cutting, hedge trimming, and cleanup of fallen trees after disasters.
Technical Parameters
Model Suitable
Excavator
Blade Thickness  MAX.
Opening
Width
Cut
Diameter
(MAX)
Cylinder
Operating
Pressure
Cutting
Cylinder
Oil Flow
Rotating Type  Shear Weight
ton mm mm mm bar I/min / kg
YTCT200TS 1.8-5 18 535 200 180-210 20-25 360°Hydraulic Rotation Option 205
YTCT250TS 6-9 20 585 250 190-230 70-90 360°Hydraulic Rotation Option 365
YTCT350TS 13-17 28 825 350 190-250 110-140 360°Hydraulic Rotation Option 870

* Max diameter based on ideal softwood conditions; hardwood capacity ~50% lower. Multiple attempts may be required.
YTCT TS Series Tree Shear:
YTCT TS Series Shear Can Apply For:

  • Hedge Trimming / Orchard Pruning / Roadside Light Vegetation Clearing.

  • Small Construction Site Land Clearing & Tree Removal

  • Clear forest sites, reclaim barren hills, and cut undergrowth in woodlands.

  • Remove old orchard trees, field bushes.

  • Cut bamboo.
Installation Guide For Excavator Forestry Shear:
1. Park on level ground, release hydraulic pressure, remove old attachment, and clean the mount.

2. Install the shear with pins and locknuts, or use a quick coupler for direct fixing.

3. Connect hoses to spare ports and secure them along the boom to prevent chafing.

4. Start excavator engine, test no‑load operation, then light cutting; verify tightness before full use.
FAQs
  • Can this tree shear be used together with a quick hitch?
    Created with Sketch.
    形状 Created with Sketch.
    Yes, it is compatible with most standard quick couplers.
  • Can YTCT bamboo shear fit mini excavators?
    Created with Sketch.
    形状 Created with Sketch.
    Yes, it fits mini excavators weight above 1.8 tons.
