BACKHOE LOADER HYDRAULIC BREAKER
BLB Series
Get a Quote Learn More >

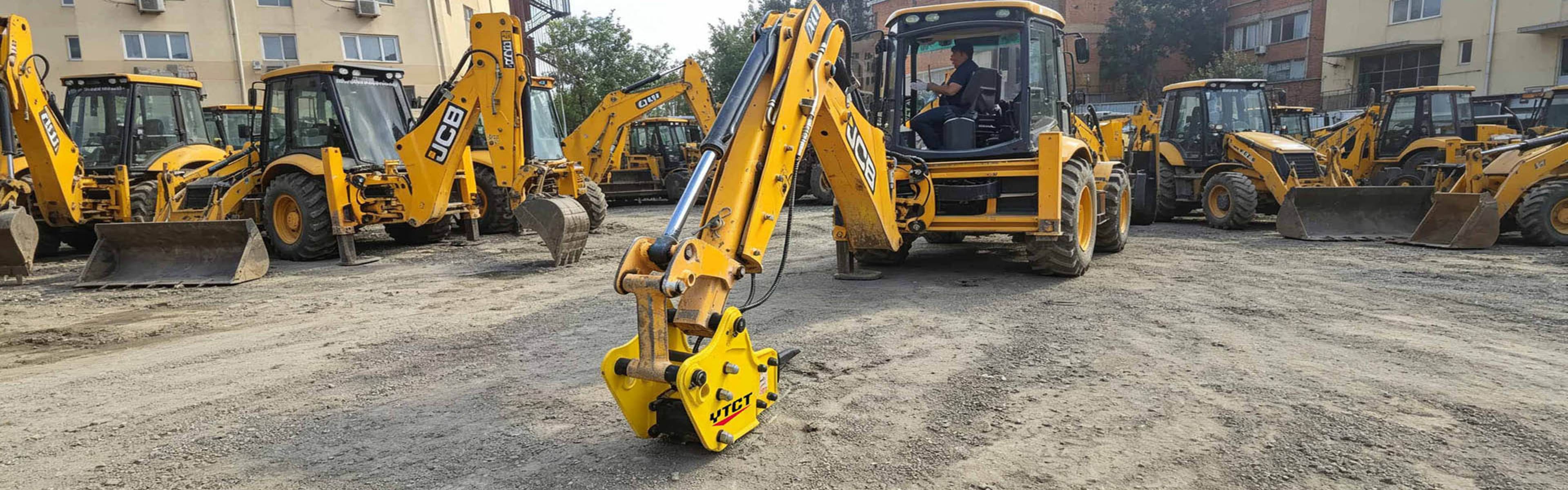

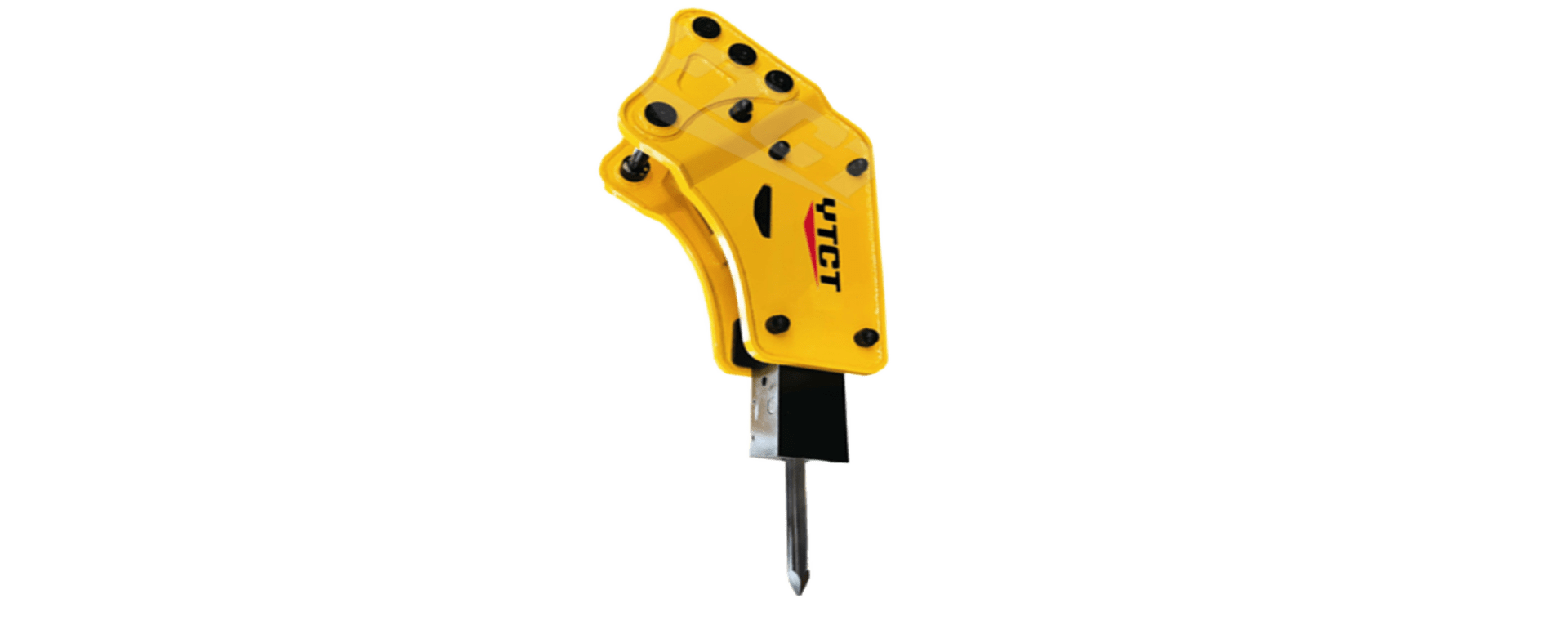

BLB Series Backhoe Loader Rock Breaker

Product Introduction
YTCT BLB series breakers are produced for backhoe loader machines, aka banana type hammers, mounted on the excavation side of backhoe loader. We produce the brackets with specific pin diamter, arm width and pin to pin center to fit different brand backhoe loaders.

The Core Innovation: The Internal Control Valve

Incredible Power-to-Weight Ratio

Light total weight reduce the load on backhoe loaders. Gas and oil work principle offers big impact power.


Ajustable Angle

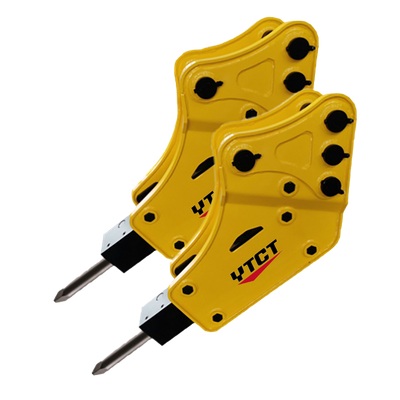

4-pins design makes it easy to change pin to pin center to fit machines and can break rock for different angle.

Refine Bracket

Cover with side protection and distance pins between mainbody to make the whole hammer more stable and durable.


YTCT BLB Series Rock Breakers

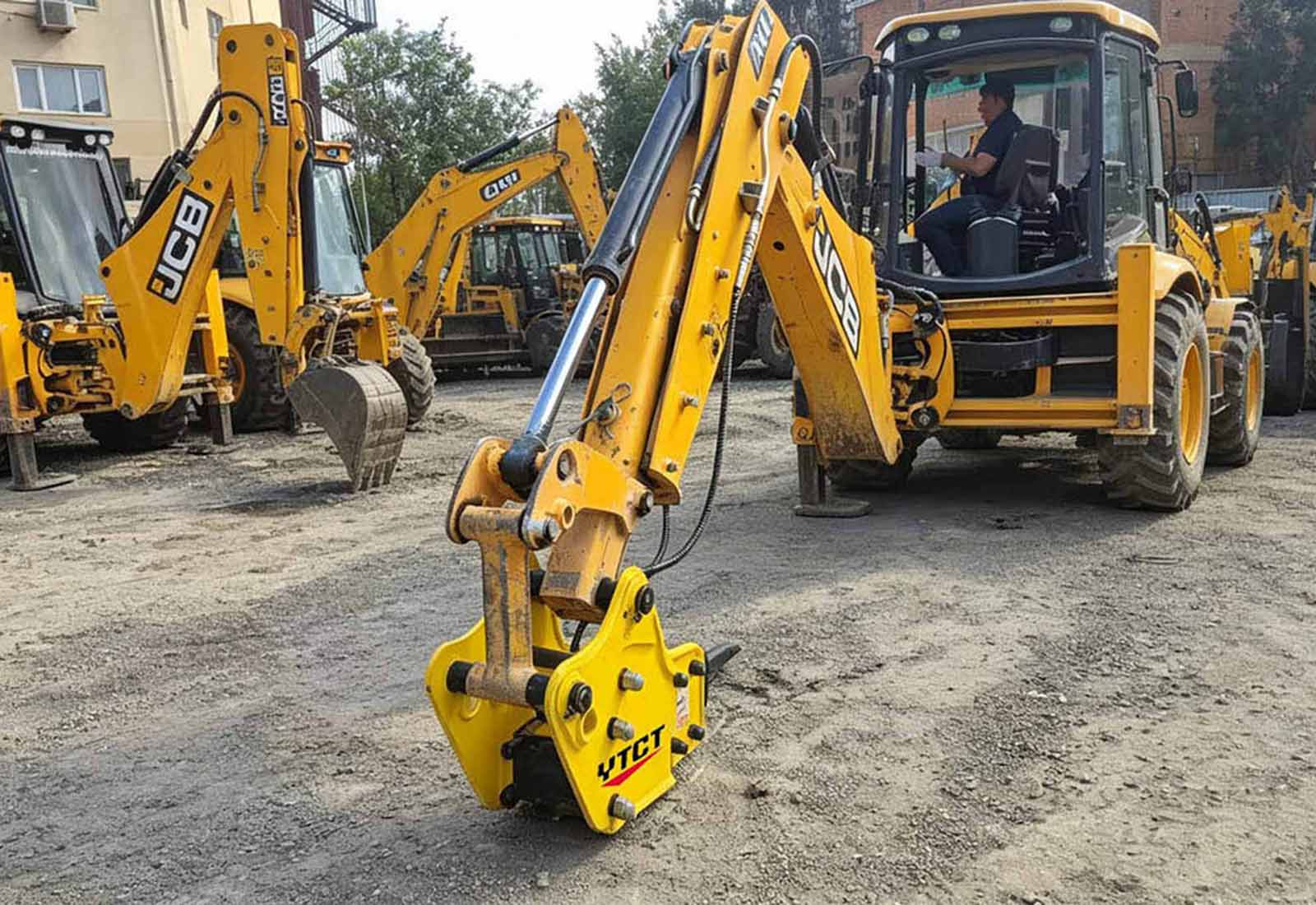

YTCT BLB backhoe loader hammers use hydraulic system of backhoe loader to provide high impact power, best helper when operators are dealing with rock, stone, other materials.

1. Demolition and Renovation: Breaking down building foundations, walls, floors, and roadways.

2. Road Construction and small civil works.

3. All other light demolition applications.
Technical Parameters
Model Chisel
Diameter
Suitable
Excavator
Operating
Pressure
Operating
Oil Flow
Blow
Frequency
Oil Hose
Diameter
Back Cylinder
N2 Gas Pressure
Impact
Energy
mm ton kg/cm2 l/min bpm inch Bar joules
YTCT20BL 45 1.2-3.0 90-120 20-30 700-1200 1/2 14-17 410
YTCT30BL 53 2.5-4.5 90-120 25-50 600-1100 1/2 14-17 770
YTCT35BL 60 3-5.5 90-120 25-50 600-1100 1/2 14-17 890
YTCT40BL 68 4-7 110-140 40-70 500-900 1/2 14-17 950
YTCT43BL 75 6-9 120-150 50-90 400-800 1/2 14-17 1240

Backhoe Loader Hammer Uses :
How to operate hydraulic breaker on backhole loader machine?

1. Check and adjust the excavator oil pressure and oil flow following the techinical parameters.

2. Grease the every point and grease chisel before mount into the breaker mainbody.

3. Check every bolts, pipe lines and fasten.

4. Against the chisel on the breaking point and chisel point vertical on the ground.

5. Impact slowly for 1 minute. Operate at normal impact frequency rate when no oil leak.
FAQs
  • How to inspect the grease point on hydraulic breaker?
    Created with Sketch.
    形状 Created with Sketch.
    The ball of grease point is missing will be considered as bad; ball in the grease nipple is good condition.
  • How often to grease hydraulic breaker?
    Created with Sketch.
    形状 Created with Sketch.
    Following the manual, greaseing the backhoe loader hammer is required for every 2 hours of operation.
