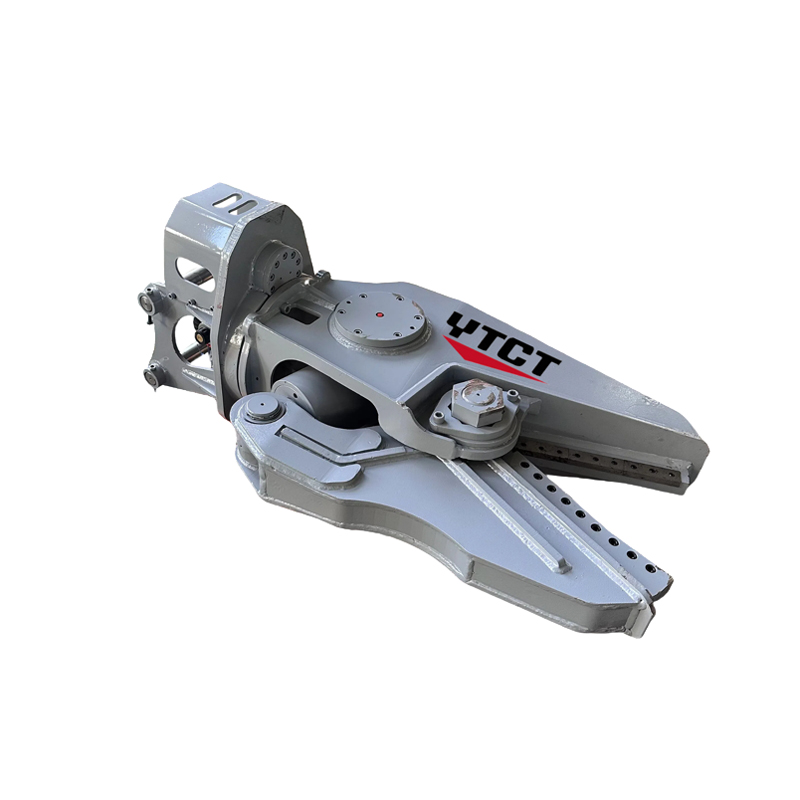

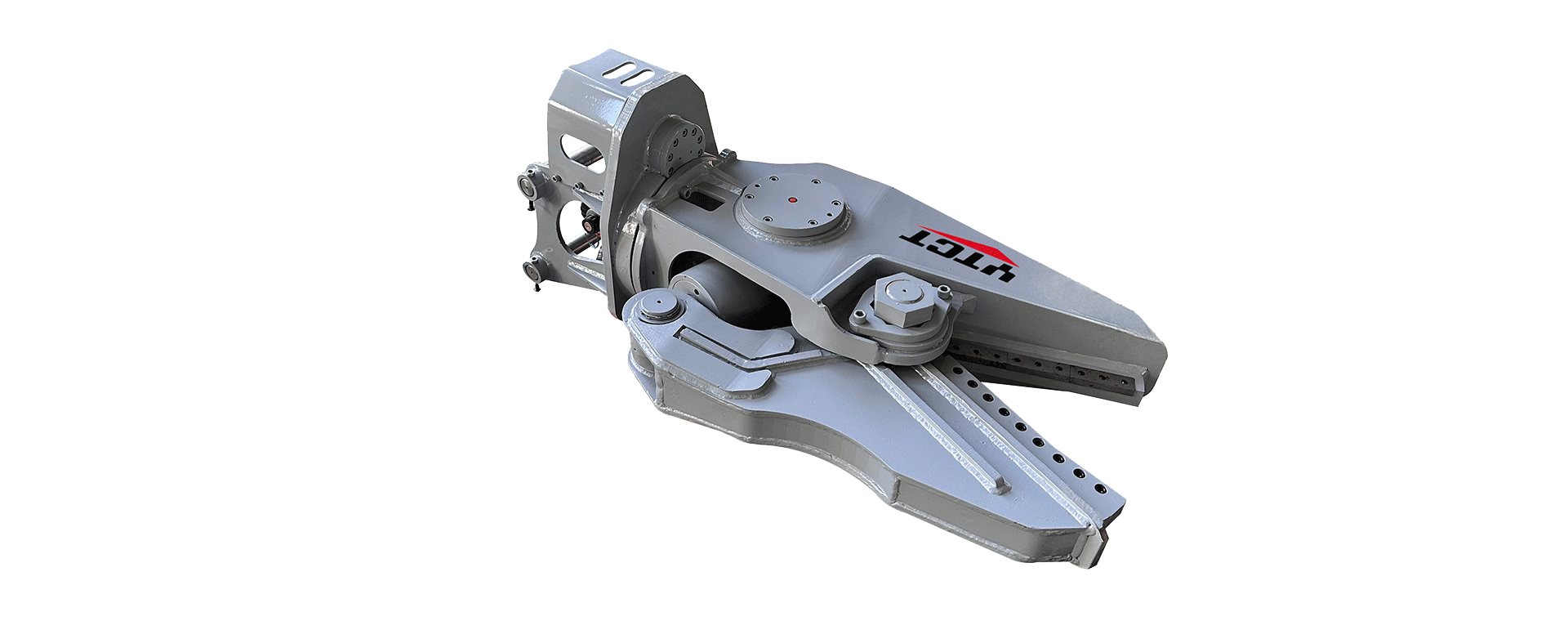

YTCT Demolition Shear For Micro & Compact Excavator
Single-Cylinder Hydraulic Shear Introduction
YTCT Light-Duty Scrap Demolition Shear is engineered for mini and micro excavators from 1.7 to 9 tonnes, delivering powerful steel cutting, rebar processing, and light scrap demolition. Boost productivity, reduce manual labor, and maximize equipment utilization with this durable, wear-resistant attachment ideal for urban job sites and tight-access projects.
YTCT LSD Series Compact Machine Hydraulic Shear for Excavator. Why Choose YTCT? Our Factory List Features:
Ball Detent Rotation
Multi-position rotation locking for fixed-angle operation. Eliminates swinging during high-altitude and confined-space demolition.
Lightweight Frame
Reduces excavator load. Ideal for micro and mini excavators and prevents tipping. Less strain on boom and hydraulic pump, extends excavators and skid steer loaders lifespan.
Universal Compatibility & OEM Adaptor
Fits all major brands including Caterpillar, Komatsu, Hyundai, Bobcat and etc. We can make connection to 100% fit your machine.
Safety and Durability
Equipped with high-pressure seals for long-term leak prevention in extreme temperatures, dust, and oily environments.
Hydraulic Metal Shear for Small Excavator
Stand built with 2 type 360° rotation: For micro excavators, 360°mechanical rotation (Ball positioning rotary structure) to save extra hydraulic oil line; For compact excavators, our single cylinder shear equipped with 360°hydraulic rotation (hydraulic rotary motor).
The compact single-cylinder demolition shear features a lightweight body for flexible operation in confined spaces: indoor factories and all other narrow working sites.
YTCT scrap metal recycling shear for compact excavator can apply for：
YTCT scrap shear compact-duty type handle the first demolition indoor and second demolition on the ground to cut the steel into smaller piece, easy for recycling and transportation.
Installation Guide For Easy Steps Mounting YTCT Hydraulic Shear: :
1. Place the shear on level ground and remove all packaging.
2. Detach the existing bucket from the excavator. Clean the stick pin bore holes thoroughly – remove all dirt and debris.
3. Install the shear onto the excavator stick or skid steer loaders. Rock the machine to check for any play or looseness, then torque all locking fasteners to specification.
4. Run high-pressure hoses along the stick with sufficient slack for boom/stick movement. For rotating models, connect the pilot line to the rotation motor.
5. Grease All Pivot Points. Apply high-temperature grease to the slew bearing, all pins, and bushings.
6. Cycle the jaw open/close and 360° indexed rotation. Check for unusual noise, leaks, or binding. Once smooth operation is confirmed, the shear is ready for work.
FAQs
What size machines is it compatible with?
It fits 1.7 to 9 ton micro excavators and skid steer loaders and mini excavators.
